Syrup Compounding & Formulation Vessel Matrix
Engineering specifications across pharmaceutical sugar dissolution and formulation vessel modules.
| Vessel Module | Volume Capacity | Jacket Type | Top Agitator | Bottom Homogenizer | Material of Construction | CIP / SIP Capability |
|---|---|---|---|---|---|---|
| Sugar Melting Kettle | 1,000–5,000 L | Dimple Jacket (3.0 bar steam) | Anchor with PTFE Scrapers (15–45 RPM) | High-Shear Disperser (1,440 RPM) | SS 316L Contact (Ra ≤ 0.4 μm) | Rotary 360° Spray Ball |
| Main Formulation Tank | 1,000–10,000 L | Dimple / Half-Pipe (Steam & Chilled) | Counter-Rotating Dual Impeller (10–60 RPM) | Rotor-Stator High Shear (0–2,800 RPM) | SS 316L Contact (Ra ≤ 0.4 μm) | Full CIP/SIP Validated |
| Storage Buffer Vessel | 1,000–10,000 L | Insulated Cladding (Rockwool) | Slow Sweep Agitator (15–30 RPM) | N/A (Laminar holding) | SS 316L Contact (Ra ≤ 0.4 μm) | Sanitary Spray Header |
| Inline Filtration Skid | 2,000–12,000 L/h | Sanitary Sparkler / Duplex Cartridge | Lobe Pump with VFD Drive | Inline Micron Filter (1–10 μm) | SS 316L Electro-polished | In-situ Steam Sanitization |

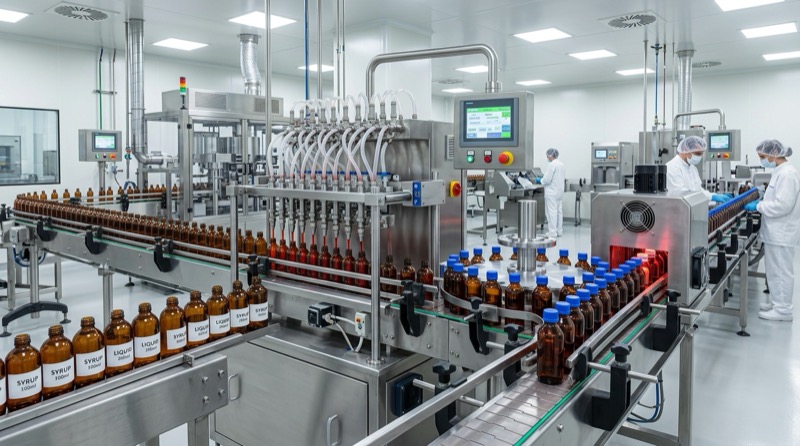

Automatic Liquid Bottling & Packaging Line Matrix
High-speed filling, capping, induction sealing, and labeling lines for pharmaceutical syrups, suspensions, and oral solutions.
| Line Configuration | Output (Bottles/Min) | Filling Heads | Filling Volume Range | Dosing Precision | Capping Formats | Sealing & Labeling |
|---|---|---|---|---|---|---|
| BTI-SFL-60 (Linear) | 40–60 BPM | 4–6 Servo Piston Nozzles | 30–250 ml (or 60–500 ml) | ± 0.5% | Single-Head ROPP / Screw | Air-Cooled Induction + Linear Labeler |
| BTI-SFR-120 (Rotary) | 80–120 BPM | 8–12 Rotary Servo Pistons | 30–300 ml | ± 0.5% | 4-Head Magnetic Torque Capper | Water-Cooled Induction + Rotary Sticker |
| BTI-SFR-180 (High-Speed) | 140–180 BPM | 16 Rotary Flow-Meter / Piston | 30–500 ml | ± 0.3% | 6-Head Rotary Capper (ROPP + CRC) | High-Speed Rotary Multi-Station Labeler |
| BTI-SFE-Monoblock | 60–100 BPM | Integrated Wash-Fill-Cap | 50–200 ml | ± 0.5% | Euro-Star Capping Turret | Compact Monoblock Footprint |
Sanitary Fabrication & Metallurgy Standards
To ensure pharmaceutical batch integrity, zero contamination, and effortless cleanability, all liquid process equipment incorporates verified metallurgy:
AISI 316L Liquid Contact
Compounding vessels, agitation shafts, valves, and filling nozzles fabricated from certified AISI 316L (EN 1.4404) with mirror electro-polish finish Ra ≤ 0.4 μm.
Diving Anti-Drip Nozzles
Bottom-up diving filling nozzles with pneumatic shut-off suck-back valves prevent liquid dripping on container threads, maintaining clean capper entry.
Sanitary Tri-Clamp & Valves
ASME BPE sanitary tri-clamp connections and zero dead-leg diaphragm sampling valves. 100% video boroscopy orbital weld documentation supplied.
FDA Gaskets & CIP System
FDA 21 CFR 177.2600 certified PTFE and EPDM seals with integrated multi-step CIP/SIP cycles (acid, alkali, and WFI rinse) via automated PLC recipe control.
BTI Direct Factory Indenting vs. Traditional Local Stockists
Comparing BTI's direct OEM indenting model against local machine stockists and workshop fabricators in Pakistan.
| Evaluation Parameter | BTI Factory Direct Indenting | Traditional Local Stockists |
|---|---|---|
| 1. Capital Expenditure (Capex) | Direct Ex-Works (EXW) OEM price eliminating middleman markups (30%–50% savings) | Heavily inflated showroom prices with high local retail financing margins |
| 2. Custom Engineering & Tooling | Custom engineered vessel geometry, nozzle diameters, bottle star-wheels & capper chucks | Standard off-the-shelf equipment requiring costly manual plant alterations |
| 3. Metallurgy & Sanitary Finish | Certified AISI 316L Contact (Ra ≤ 0.4 μm) with 3.1 mill test certificates & passivation logs | Unverified metallurgy; risk of lower SS 201/304 or poor manual grinding in local shops |
| 4. Pre-Shipment Inspection (FAT) | Factory FAT water and actual syrup trials, filling accuracy checks, and video logs | Zero pre-shipment FAT logs; client accepts whatever arrives at the warehouse |
| 5. Regulatory Compliance (DRAP / cGMP) | Complete turnkey DQ, IQ, OQ, PQ dossiers, 21 CFR Part 11 electronic batch records | Generic wiring diagrams only; no qualification support for DRAP licensing |
| 6. Local SAT & Engineering Accountability | On-site SAT by certified local field engineers and OEM technical staff | Drop-off delivery only; client must source unaffiliated third-party technicians |
Deploying Liquid & Syrup Lines Across Pakistan Pharma Hubs
Lahore Pharma Corridor
Headquarters in DHA Phase 5. Active client installations across Sundar Industrial Estate (SIE), Kot Lakhpat, Multan Road, and Ferozepur Road pharma clusters.
Karachi Maritime Hub
Branch office in Memon CHS. Rapid deployment to Korangi Industrial Area, SITE Karachi, Federal B Area, Port Qasim, and Hub Baluchistan.
Hattar Industrial Zone
Dedicated field engineers supporting Hattar Industrial Estate (HIE), Haripur, Peshawar, and northern pharmaceutical production facilities.
Islamabad / Rawalpindi
Continuous coordination with DRAP headquarters and turnkey execution in I-9, I-10, and Kahuta Industrial Triangle.
Oral Liquid & Syrup Machinery FAQ
What vessel capacities are available for syrup and oral suspension preparation?
How does diving-nozzle filling prevent foaming and dripping during liquid bottling?
What bottle capping styles are supported by the automatic bottling line?
What metallurgy and surface finish standards are maintained for oral liquid contact?
What cost and regulatory advantages does BTI direct indenting provide?
Ready to Engineer Your Oral Liquid Preparation & Bottling Line?
Submit your syrup viscosity, batch formulation size, bottle format, and target production speed. Our technical engineering desk delivers an itemized equipment proforma within 48 hours.
