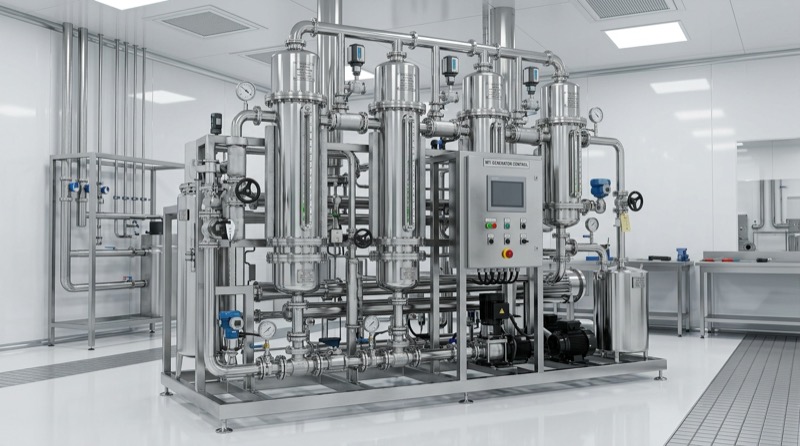

Multi-Effect WFI Water Still Parameter Matrix
Standard capacities, energy consumption, and thermal column ratings across industrial falling-film distillation units.
| Model Class | Columns (Effects) | WFI Capacity (L/h) | Plant Steam Demand | Cooling Water (m³/h) | Heat Exchanger Type | TOC Compliance |
|---|---|---|---|---|---|---|
| BTI-WFI-100 | 3 Columns | 100 L/h | 35 kg/h @ 0.4–0.6 MPa | 0.3 m³/h | Double-Tube-Sheet (DTS) | < 500 ppb (USP <643>) |
| BTI-WFI-300 | 4 Columns | 300 L/h | 90 kg/h @ 0.5–0.7 MPa | 0.8 m³/h | Double-Tube-Sheet (DTS) | < 500 ppb (USP <643>) |
| BTI-WFI-500 | 5 Columns | 500 L/h | 135 kg/h @ 0.5–0.8 MPa | 1.2 m³/h | Double-Tube-Sheet (DTS) | < 500 ppb (USP <643>) |
| BTI-WFI-1000 | 6 Columns | 1,000 L/h | 220 kg/h @ 0.5–0.8 MPa | 2.0 m³/h | Double-Tube-Sheet (DTS) | < 500 ppb (USP <643>) |
| BTI-WFI-3000 | 6 Columns | 3,000 L/h | 620 kg/h @ 0.6–0.8 MPa | 5.5 m³/h | Double-Tube-Sheet (DTS) | < 500 ppb (USP <643>) |
Pure Steam Generator (PSG) Engineering Matrix
Centrifugal cyclone separator technology generating dry saturated steam for sterilizers and SIP processing lines.
| Model | Steam Output (kg/h) | Steam Pressure | EN 285 Dryness | Non-Condensable Gas | Feedwater Purity | Automation Unit |
|---|---|---|---|---|---|---|
| BTI-PSG-150 | 150 kg/h | 0.3–0.5 MPa | > 0.95 (Dry Saturated) | < 3.5% (EN 285) | Purified Water / RO Distillate | Siemens S7 PLC Touch |
| BTI-PSG-300 | 300 kg/h | 0.3–0.6 MPa | > 0.95 (Dry Saturated) | < 3.5% (EN 285) | Purified Water / RO Distillate | Siemens S7 PLC Touch |
| BTI-PSG-600 | 600 kg/h | 0.3–0.6 MPa | > 0.95 (Dry Saturated) | < 3.5% (EN 285) | Purified Water / RO Distillate | Siemens S7-1500 + Audit Trail |
| BTI-PSG-1500 | 1,500 kg/h | 0.3–0.8 MPa | > 0.95 (Dry Saturated) | < 3.5% (EN 285) | Purified Water / RO Distillate | SCADA 21 CFR Part 11 |
Certified ASME BPE Metallurgy & Sanitary Skid Construction
To guarantee pyrogen-free water and steam, all contact surfaces conform strictly to ASME BPE standards and international pharmacopeias:
AISI 316L (EN 1.4435) Contact
Column tubes, condenser shells, and distribution headers fabricated strictly from low-carbon AISI 316L (EN 1.4435) with controlled delta ferrite content (< 1%).
Ra ≤ 0.4 μm Mirror Electropolish
All contact surfaces electro-polished to mirror finish Ra ≤ 0.4 μm (15 μ-in) to eliminate microscopic biofilm adhesion and rouging vulnerability.
Orbital TIG & Boroscopy
Automatic closed-head orbital TIG welding under 99.999% argon purge, backed by 100% video boroscopic weld inspection recordings and weld logs.
Continuous 80°C Loop & Valves
Zero dead-leg sanitary diaphragm valves (ASME BPE L/D < 2) with continuous hot recirculation (>80°C) ensuring self-sanitizing pyrogen-free operation.
BTI Direct Factory Indenting vs. Traditional Local Stockists
Comparing BTI's direct manufacturer indenting model against local water treatment assemblers and dealers.
| Evaluation Parameter | BTI Factory Direct Indenting | Traditional Local Stockists |
|---|---|---|
| 1. Capital Expenditure (Capex) | Direct Ex-Works (EXW) OEM price eliminating middleman markups (30%–50% savings) | Heavily marked up by domestic vendors with high commercial intermediary fees |
| 2. Custom Engineering & Tooling | Custom engineered column number (3–6 effects), tailored steam pressure, and loop capacity | Standard off-the-shelf single column boiler units unsuitable for high-capacity WFI |
| 3. Metallurgy & Sanitary Finish | Certified AISI 316L (EN 1.4435) with electro-polish Ra ≤ 0.4 μm, DTS heat exchangers | Single-tube-sheet designs with non-certified SS 304 causing cross-contamination |
| 4. Pre-Shipment Inspection (FAT) | Hydrostatic pressure test (1.5x working pressure), helium leak check, and live steam run | No pre-shipment testing; units assembled locally from unverified imported components |
| 5. Regulatory Compliance (DRAP / cGMP) | Complete turnkey DQ, IQ, OQ, PQ dossiers, TOC/conductivity logs, and passivation certificates | Generic pump manuals only; fails DRAP injectable licensing requirements |
| 6. Local SAT & Engineering Accountability | Full on-site SAT by certified local field engineers and OEM technical staff | Drop-off delivery only; plant owner left to hire local non-sanitary plumbing contractors |
Serving Parenteral & Water Systems Across Pakistan
Lahore Pharma Corridor
Headquarters in DHA Phase 5. Active client installations across Sundar Industrial Estate (SIE), Kot Lakhpat, Multan Road, and Ferozepur Road pharma clusters.
Karachi Maritime Hub
Branch office in Memon CHS. Rapid deployment to Korangi Industrial Area, SITE Karachi, Federal B Area, Port Qasim, and Hub Baluchistan.
Hattar Industrial Zone
Dedicated field engineers supporting Hattar Industrial Estate (HIE), Haripur, Peshawar, and northern pharmaceutical production facilities.
Islamabad / Rawalpindi
Continuous coordination with DRAP headquarters and turnkey execution in I-9, I-10, and Kahuta Industrial Triangle.
WFI & Pure Steam Engineering FAQ
What pharmacopeial water quality standards do BTI WFI stills meet?
How does Double-Tube-Sheet (DTS) design prevent cross-contamination?
Does the Pure Steam Generator comply with EN 285 sterilization standards?
What metallurgy and welding standards are enforced on distribution loops?
What cost advantages does BTI offer over local third-party water treatment vendors?
Ready to Engineer Your High-Purity Water & Steam Skid?
Submit your required hourly WFI consumption, plant boiler steam availability, and distribution loop layout. BTI delivers an itemized engineering proposal within 48 hours.
